PIPELINE HEADS

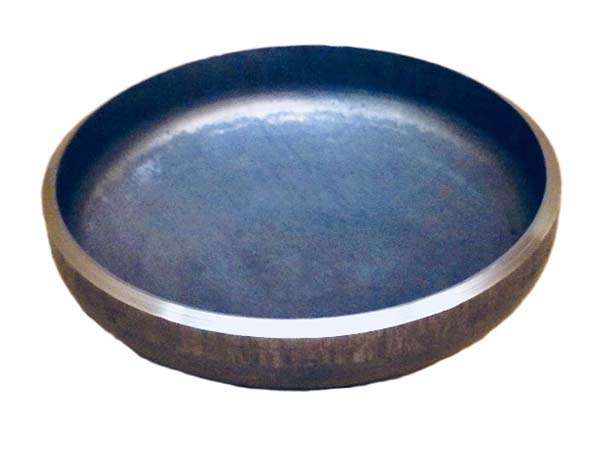

DIN HEAD (EUROPE)
| DIAMETER | HEIGHT | DIAMETER | HEIGHT |
|---|---|---|---|
| 26.9 | 18 | 139.7 | 43 |
| 33.7 | 19 | 168.3 | 53 |
| 42.4 | 21 | 219.1 | 67 |
| 48.3 | 22 | 273 | 77 |
| 60.3 | 24 | 323.9 | 91 |
| 76.1 | 27 | 355.6 | 101 |
| 88.9 | 30 | 406.4 | 115 |
| 101.6 | 36 | 508 | 150 |
| 114.3 | 38 | 610 | 157 |

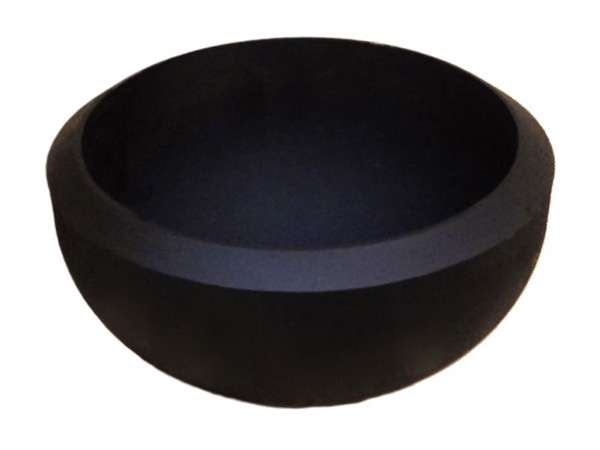

ASTM HEAD (USA)
| DIAMETER | HEIGHT | DIAMETER | HEIGHT |
|---|---|---|---|
| 1 1/2″ | 38,1 | 10″ | 127 |
| 2″ | 38,1 | 12″ | 152,4 |
| 2 1/2″ | 38,1 | 14″ | 165,1 |
| 3″ | 50,8 | 16″ | 177,8 |
| 4″ | 63,5 | 18″ | 203,2 |
| 5″ | 76,2 | 20″ | 228,6 |
| 6″ | 88,9 | 24″ | 266,7 |
| 8″ | 101,6 |
TAILOR-MADE
PRODUCT RUNS
No product has a minimum run.
We adapt manufacturing to the number of products our clients need.
MATERIALS AND
DIMENSIONS
Materials: Carbon Steel, stainless Steel, aluminium and titanium.
Maximum thick: Up to 10mm in DIN Heads and up to 15 mm in ASTM.
DEEP-DRAWING
BENEFITS
Speed of assembly
Bearing a bigger pressure
Same measure in all parts
